VCF Installer on Nested ESXi

As-built

I tried to install the VCF-installer OVA on Proxmox directly, but I kept running into issues, so I deployed it directly onto the nested ESXi servers.

ESXi-01

I’ve added temporary storage onto ESXi-01 and then deployed vcf-installer onto it.

Additional storage

Stop the Proxmox VM 101

# From Proxmox, stop the server
qm stop 101

Add the 100GB disk

qm set 101 --sata3 local-lvm:100,ssd=1

# Verify
# qm config 101 | grep sata
sata0: local-lvm:vm-101-disk-0,size=80G,ssd=1
sata1: vmstore2-vsan:vm-101-disk-0,size=200G,ssd=1
sata2: vmstore2-vsan:vm-101-disk-1,size=50G,ssd=1
sata3: local-lvm:vm-101-disk-1,size=100G,ssd=1

Start ESXi-01

qm start 101

Create VMFS datastore

Access the ESXi-01 via https://192.168.200.21/ui

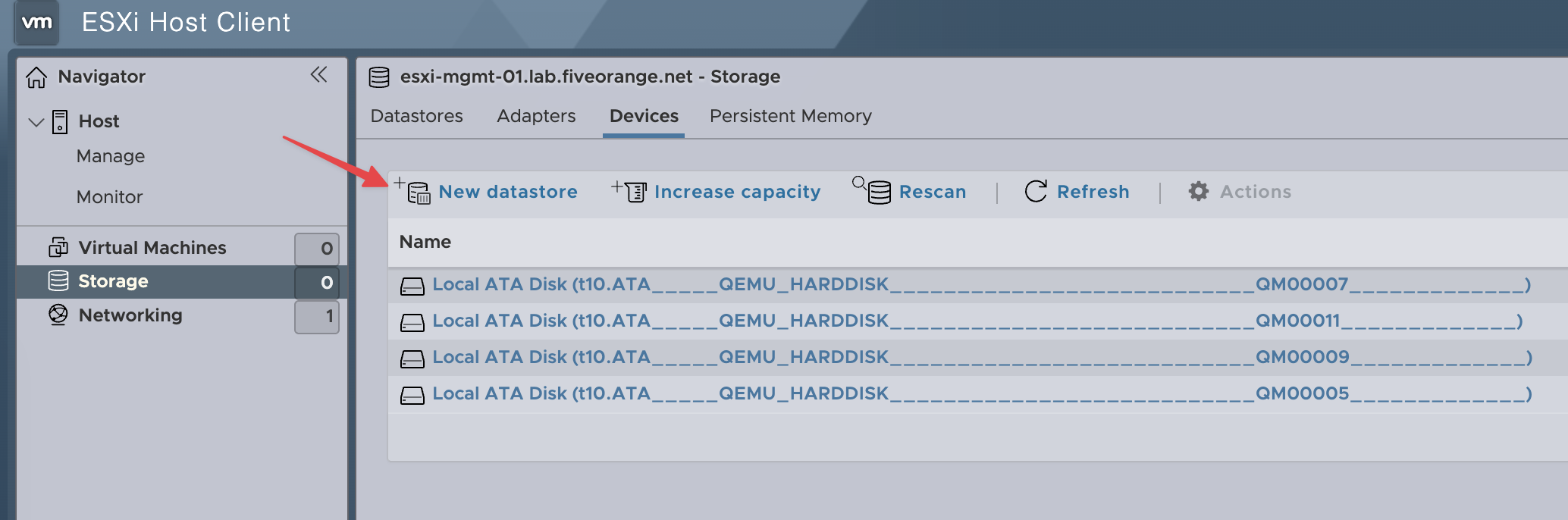

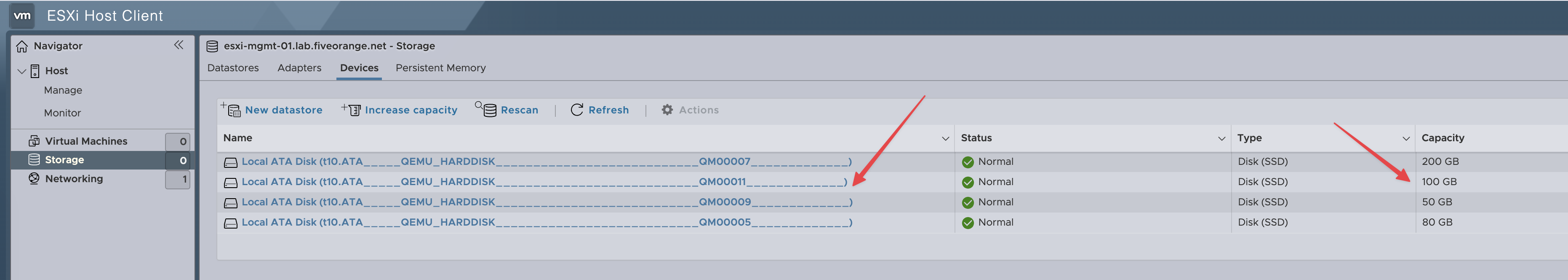

Goto Storage and you will be able to see it.

Click on New Datastore

Give it a name

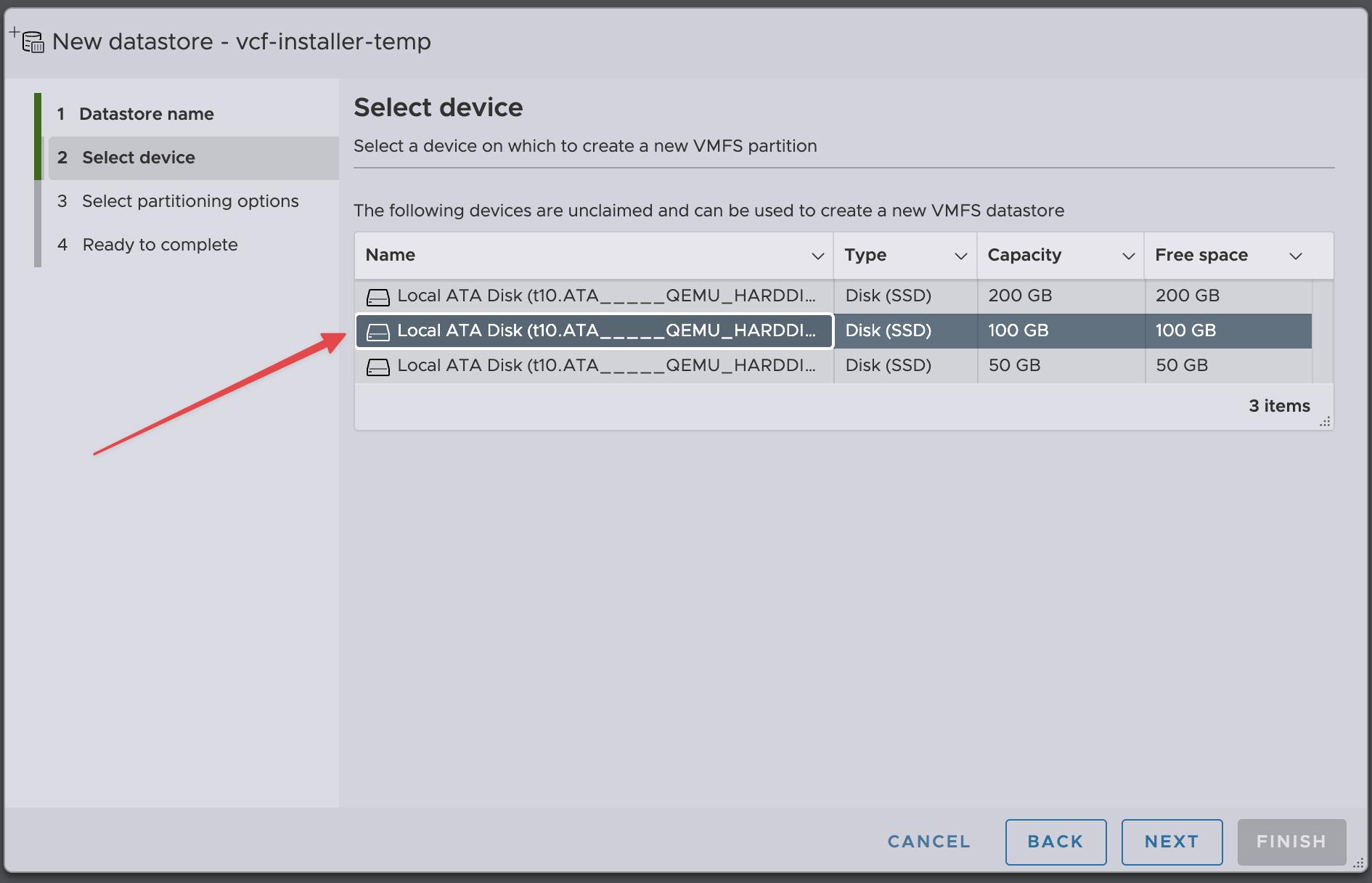

Select the new drive

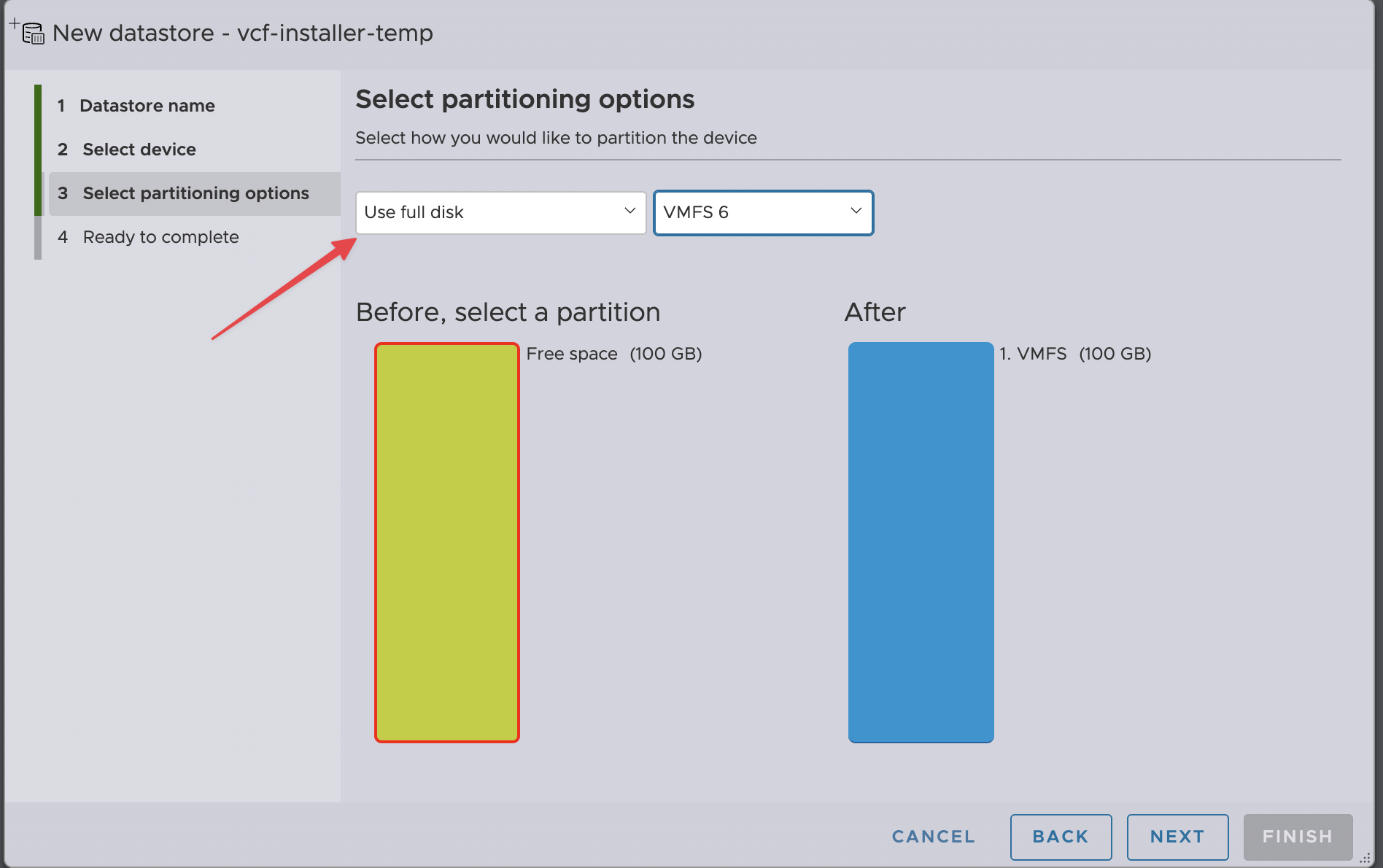

Use full disk

Check

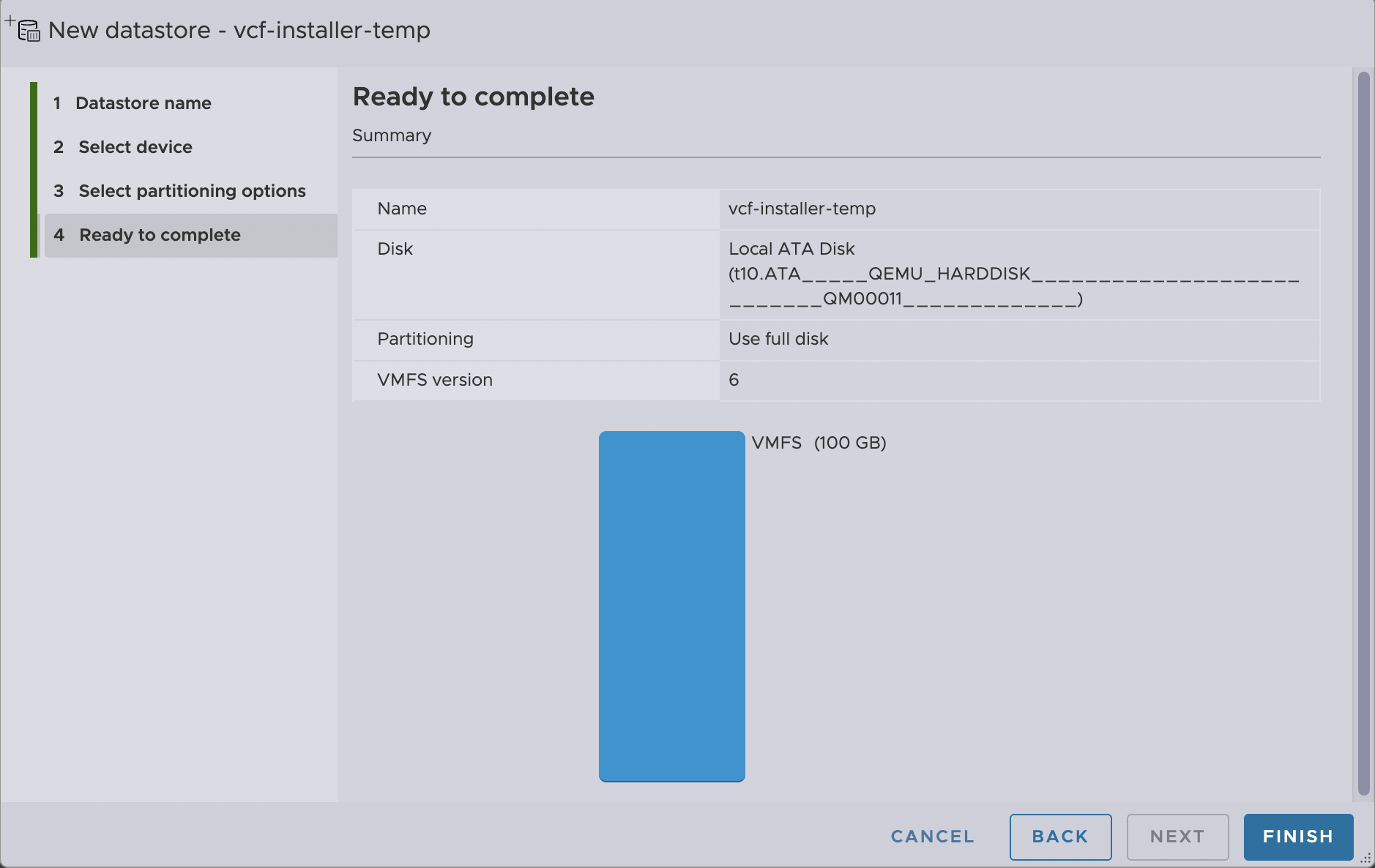

And click on Finish

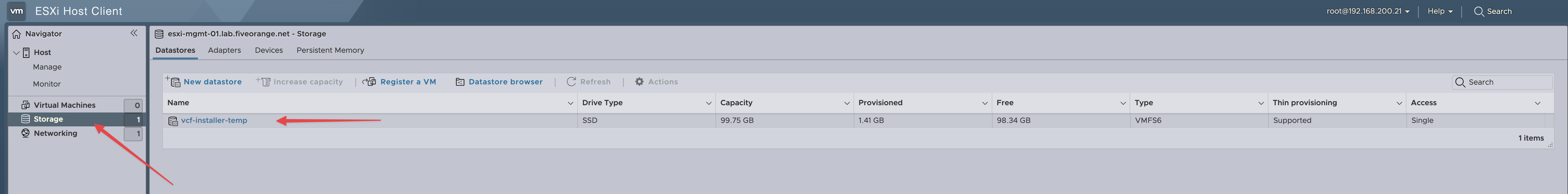

Verification

`vcf-installer` OVA deployment

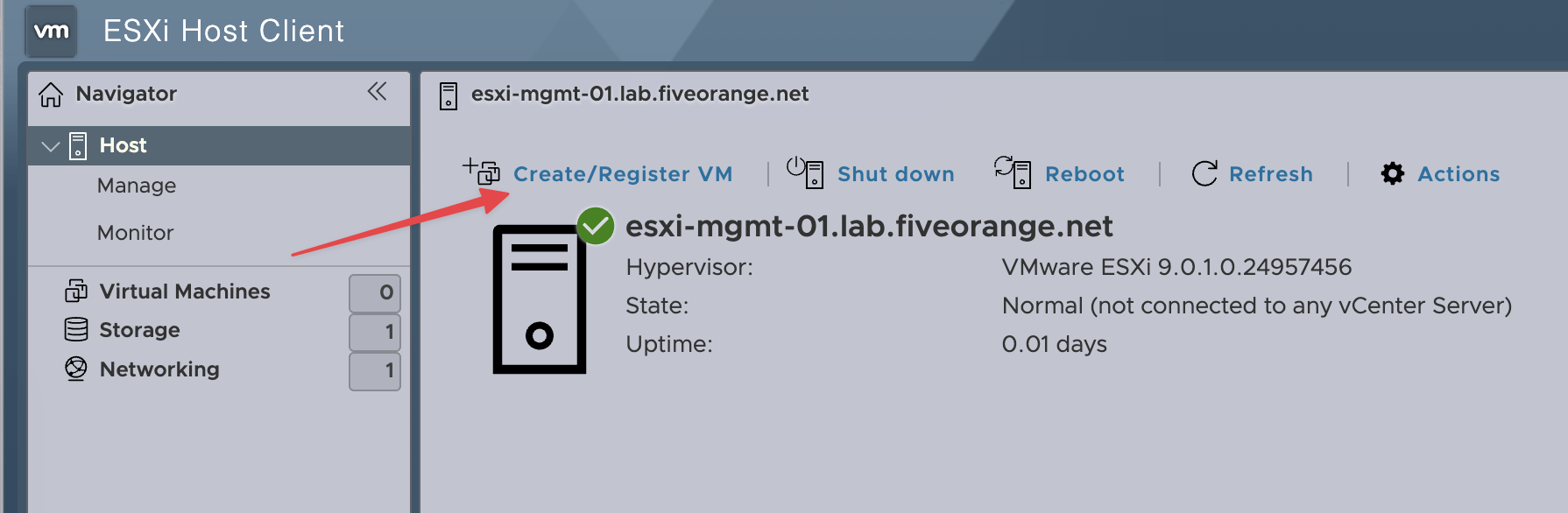

From ESXi-01, click on Create/Register VM

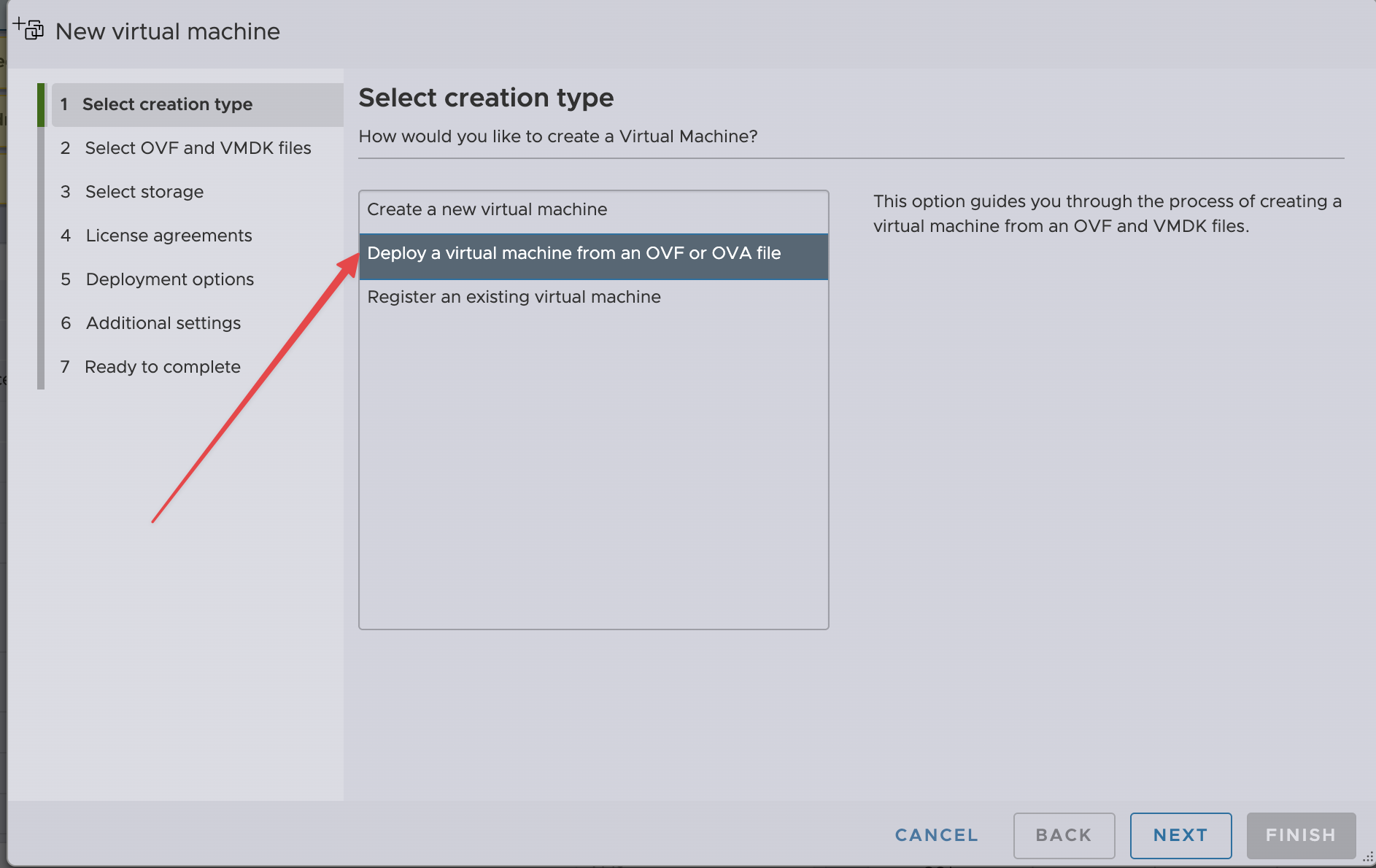

Deploy from OVF/OVA

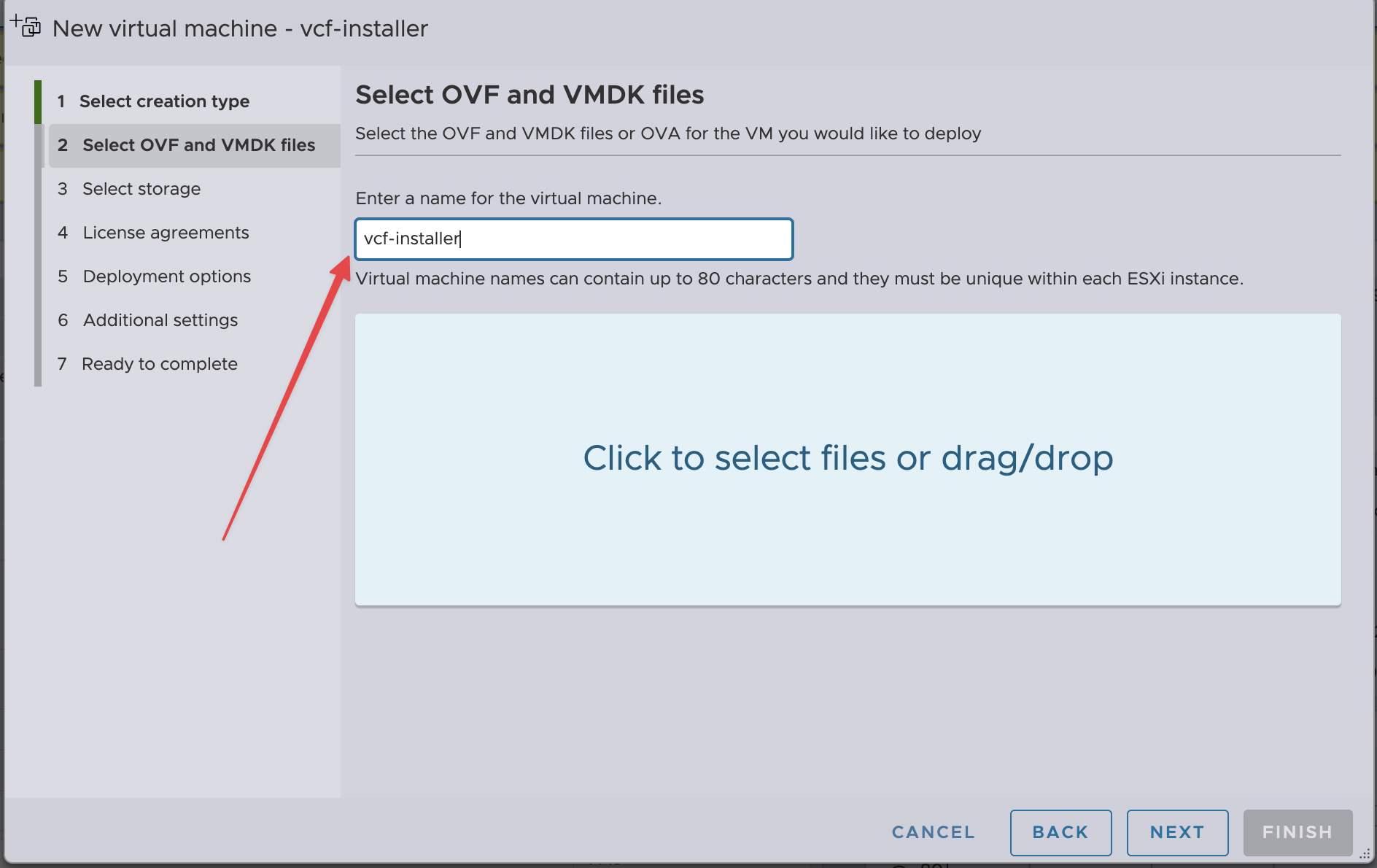

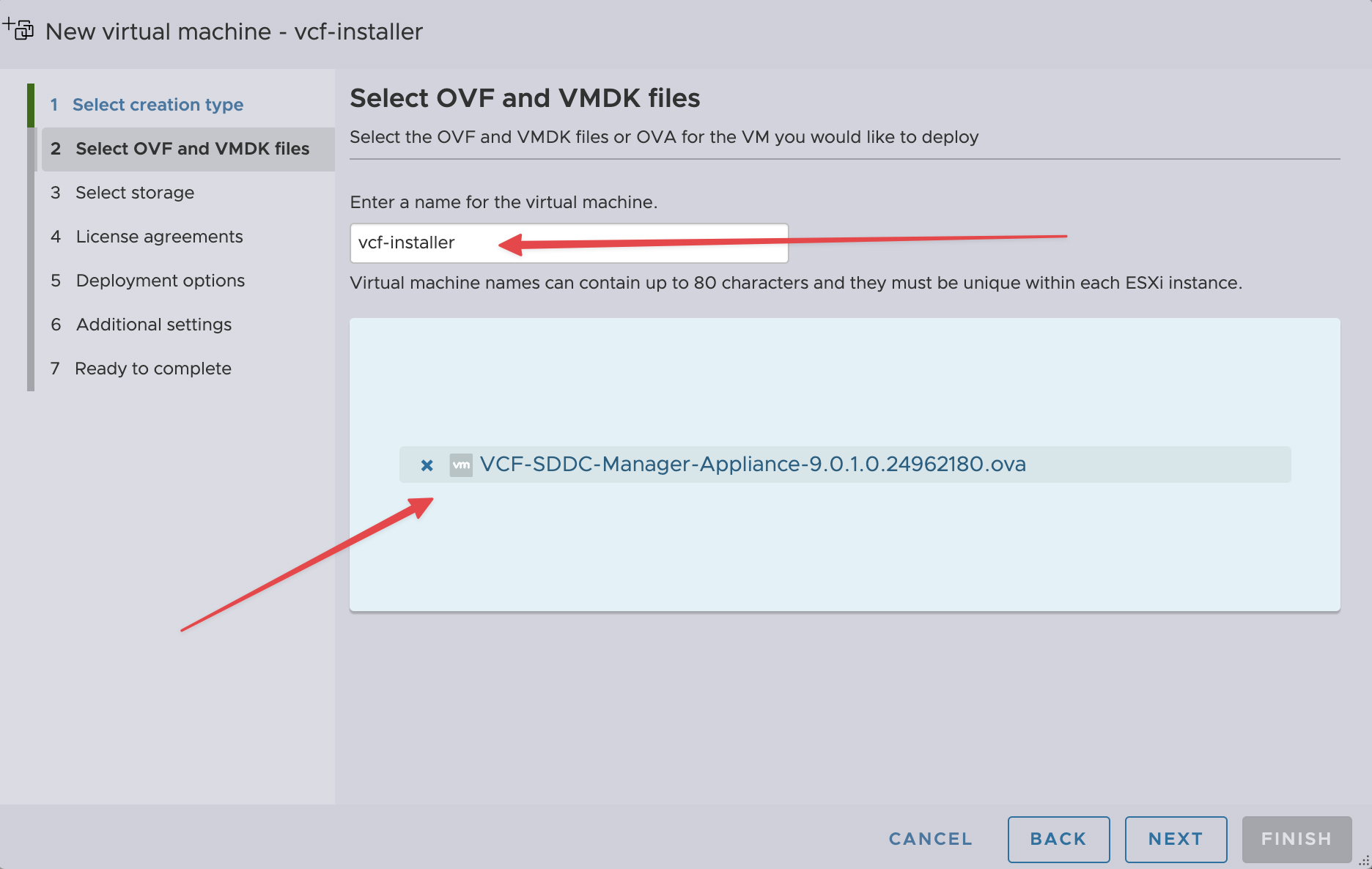

Give it a name and select select the file

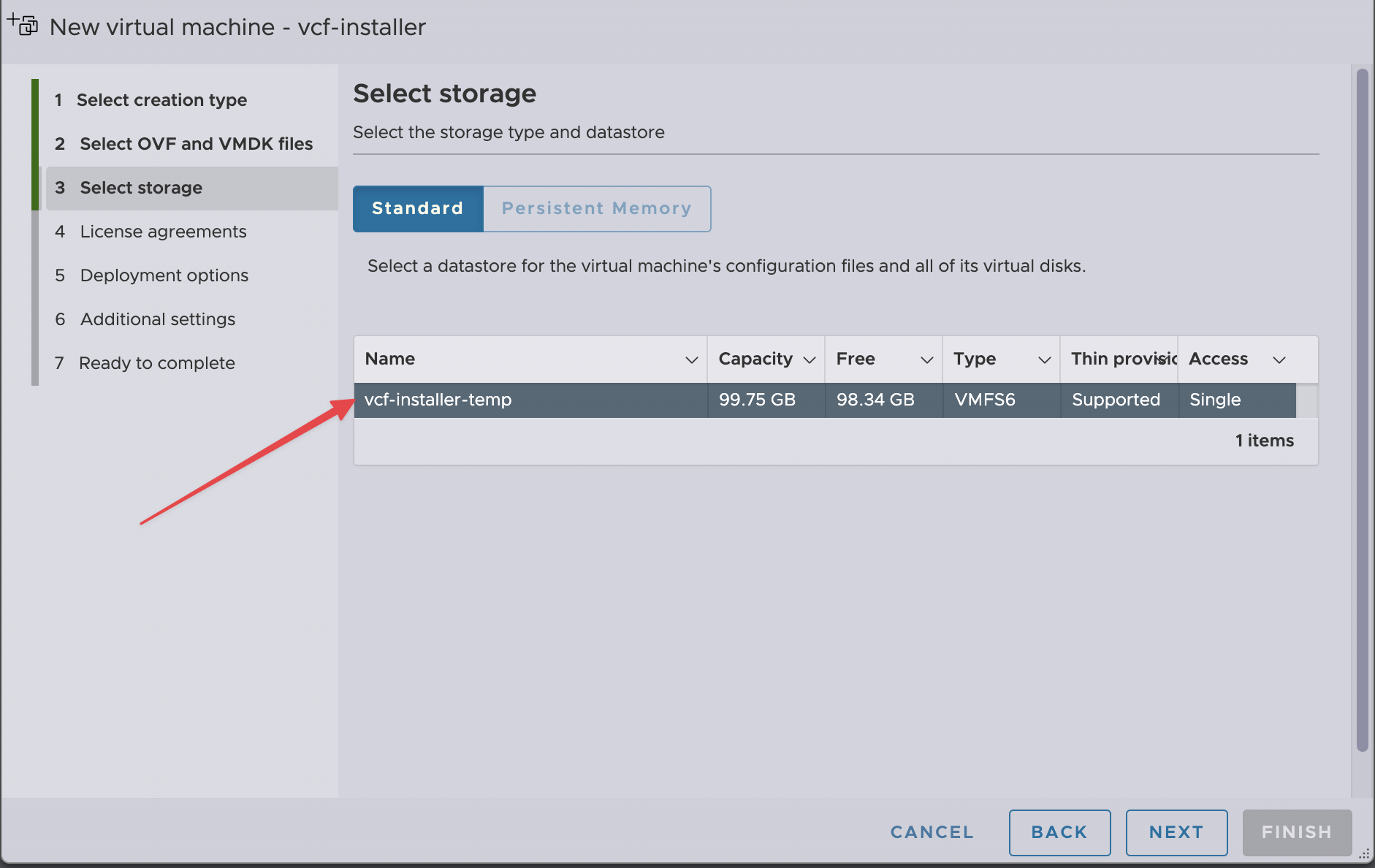

Select the storage

Agree on the licensing

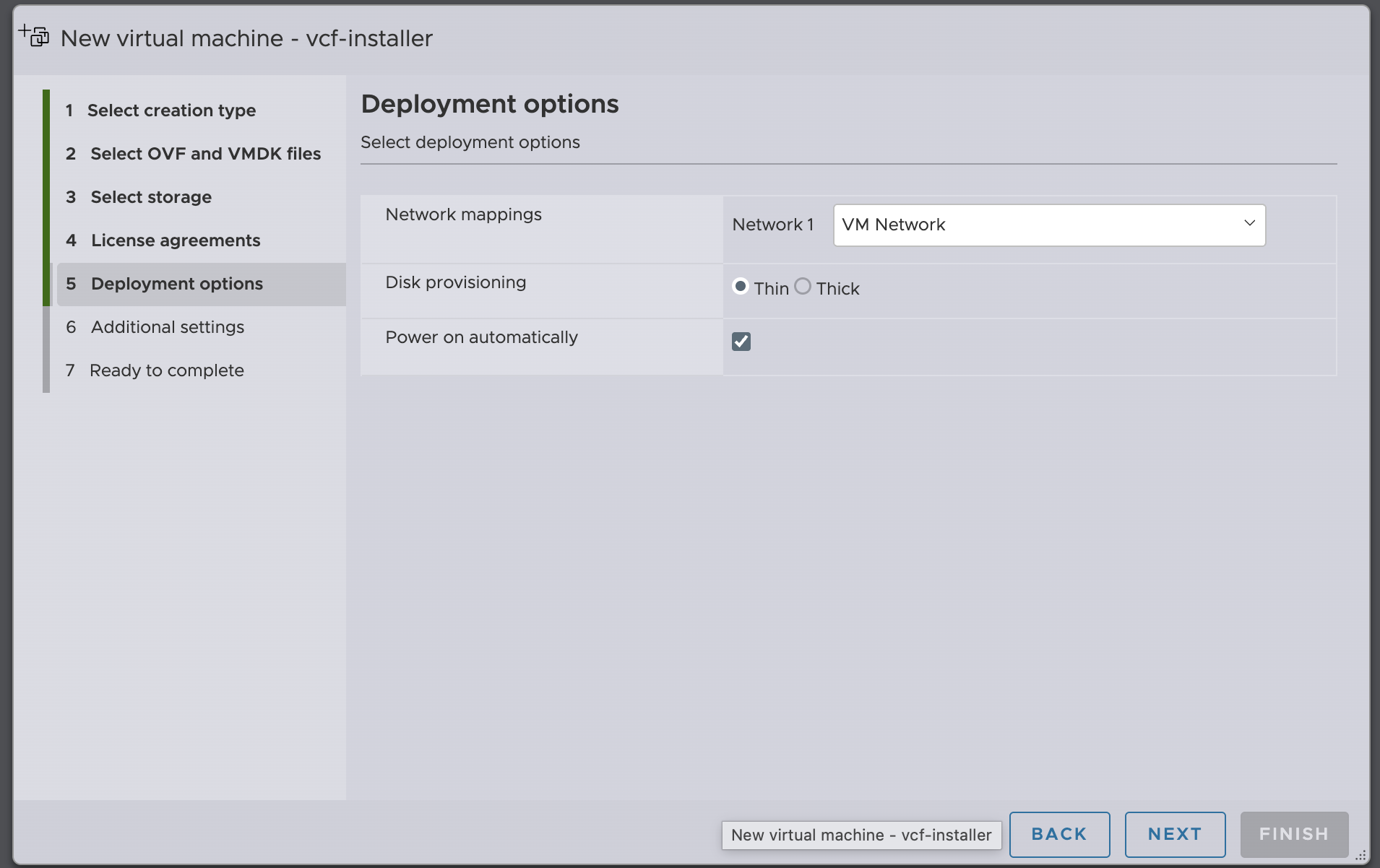

Afterwards select the VM network and provisioning type

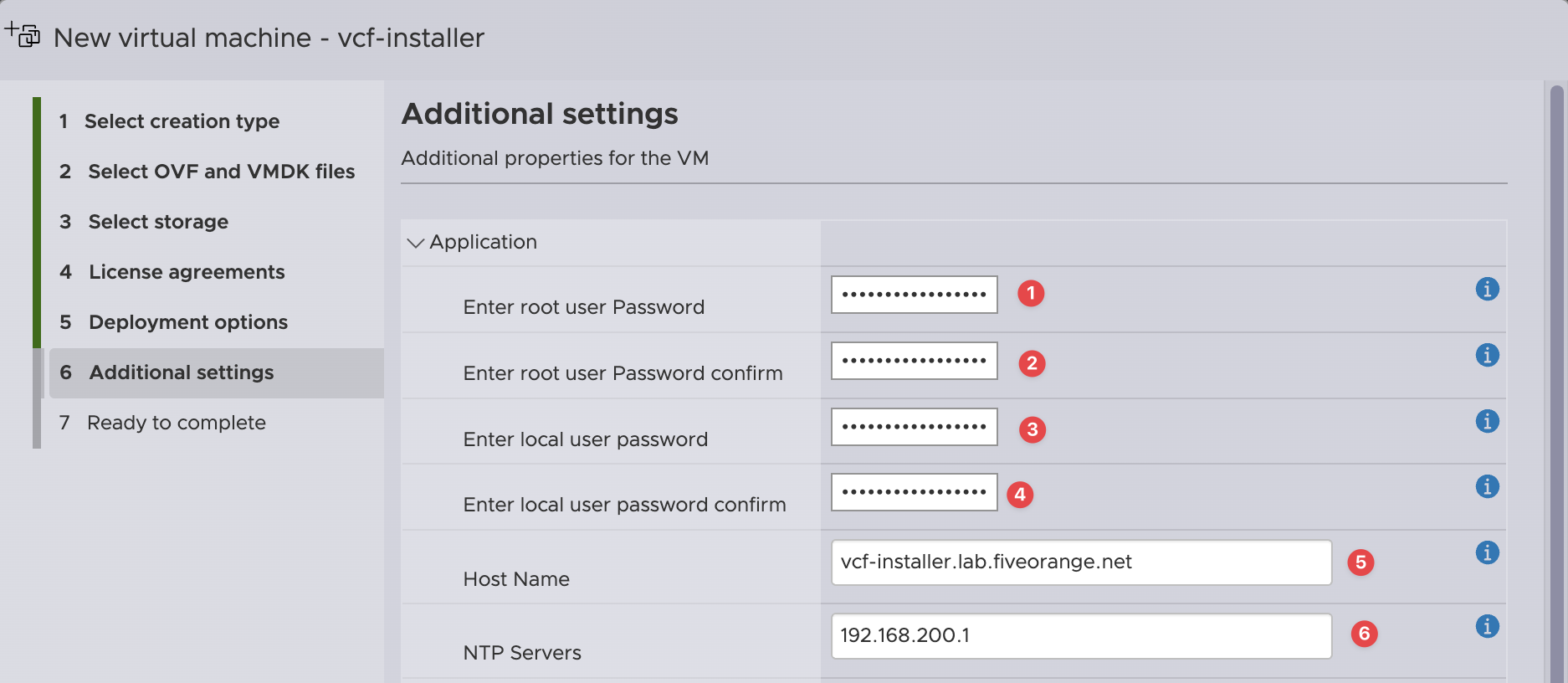

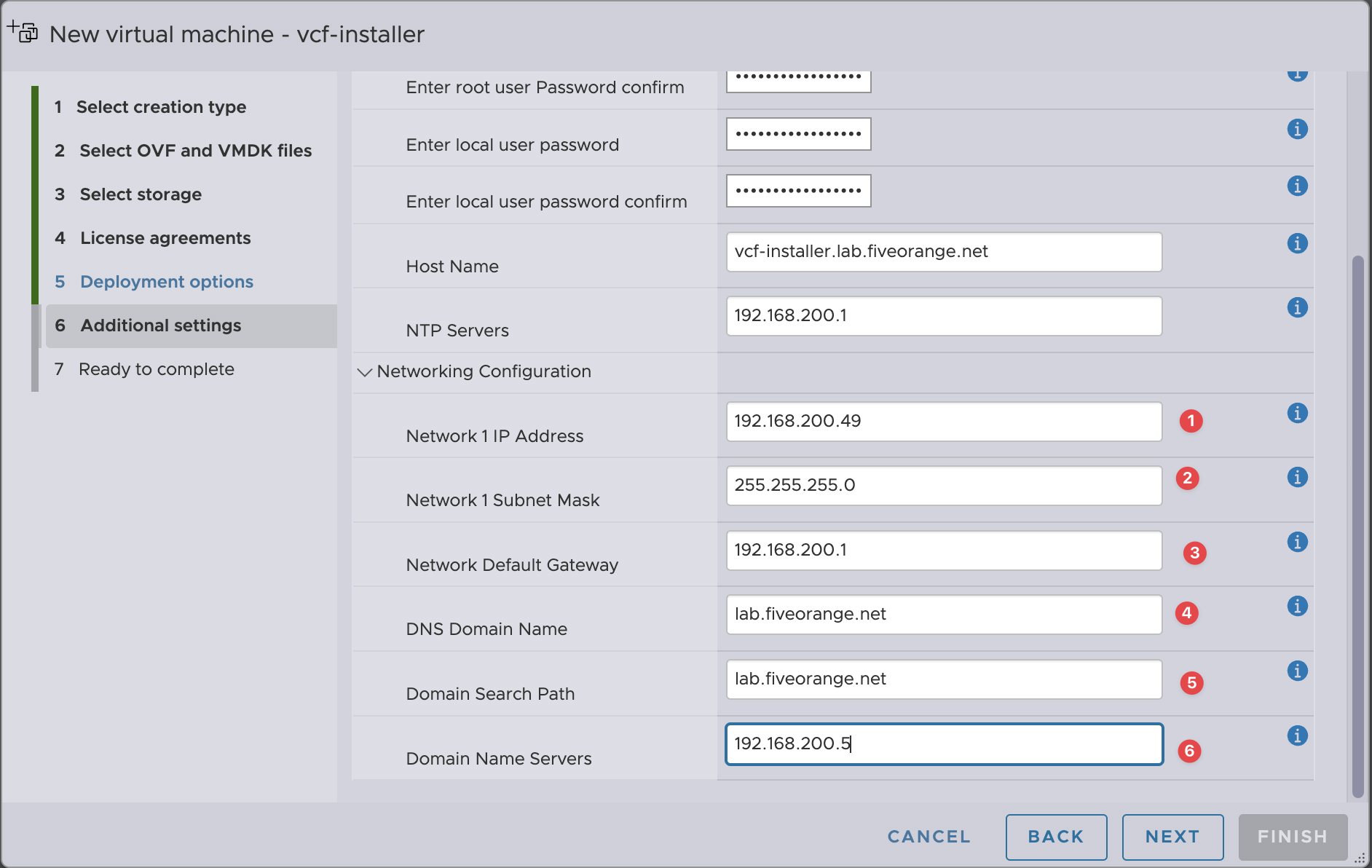

Fill in the details

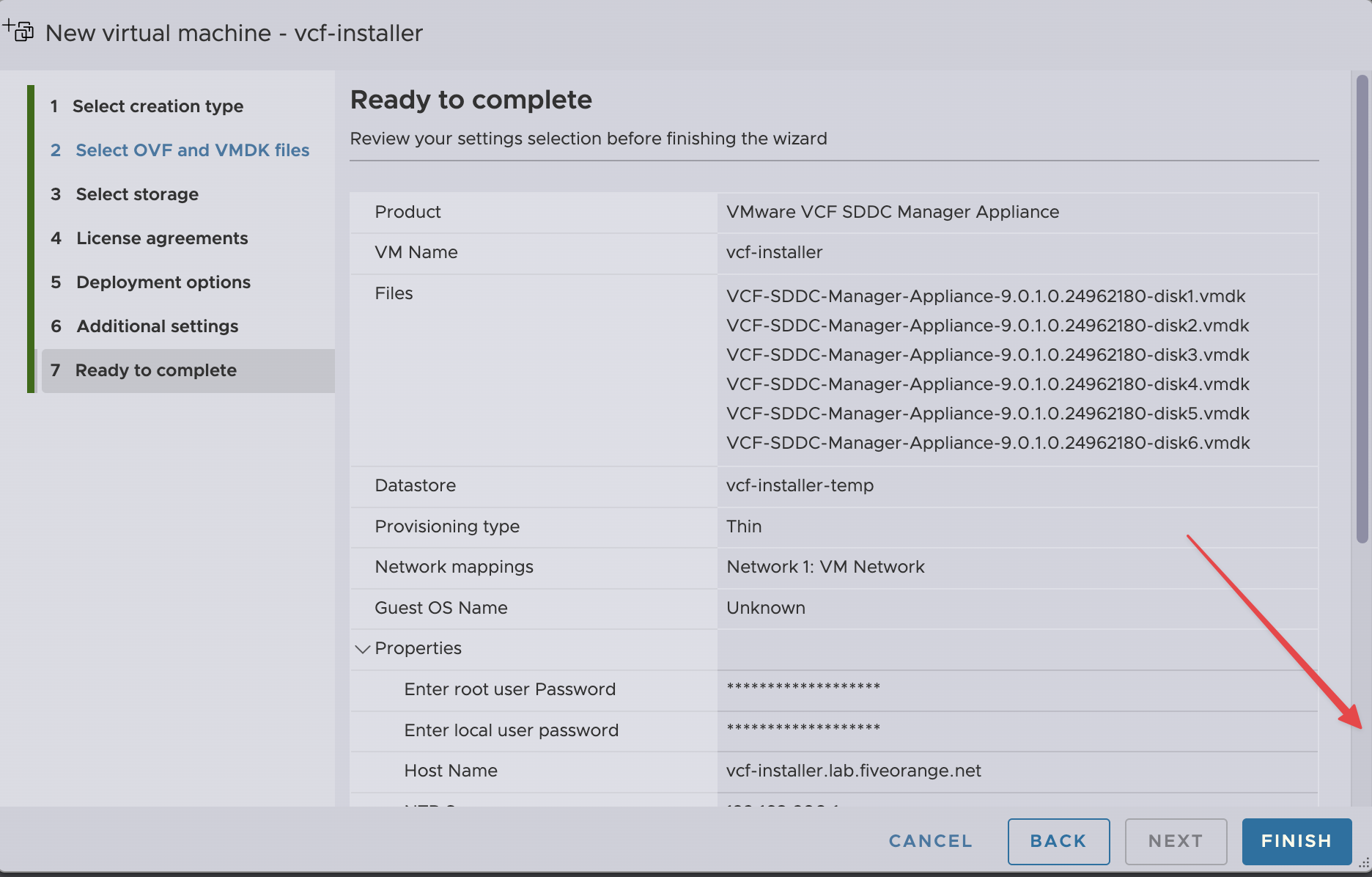

Review

Ensure you scroll down and check everything.

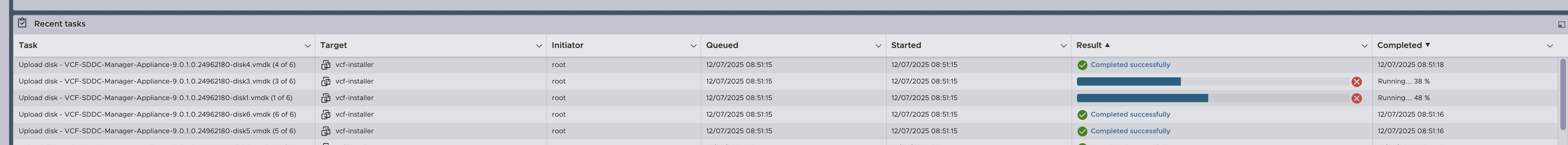

Do not refresh the UI. Tho you can see the progress here.

Since its nested virtualization, it might take some time.

Starting `vcf-installer` VM

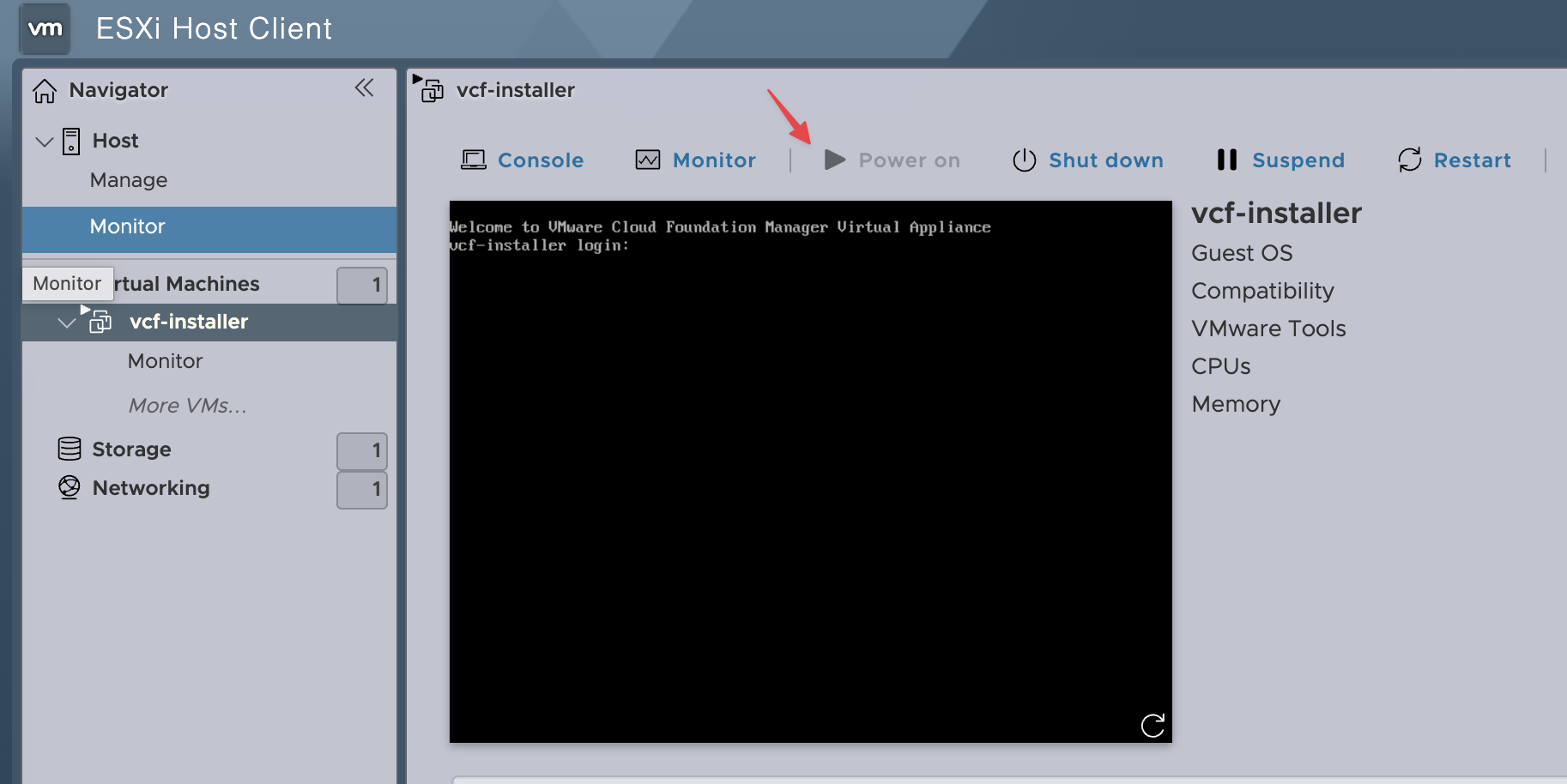

Goto the console and power on the VM

Check connectivity

# ping 192.168.200.49
PING 192.168.200.49 (192.168.200.49) 56(84) bytes of data.
64 bytes from 192.168.200.49: icmp_seq=1 ttl=64 time=0.636 ms


# Check DNS
dig vcf-installer.lab.fiveorange.net +short
192.168.200.49
