Post Install - Resource Pinning

I did this as I don’t have a HA due to resourcing constraints. I want the VM’s to be brought up on the right hosts, so that my lab is stable.

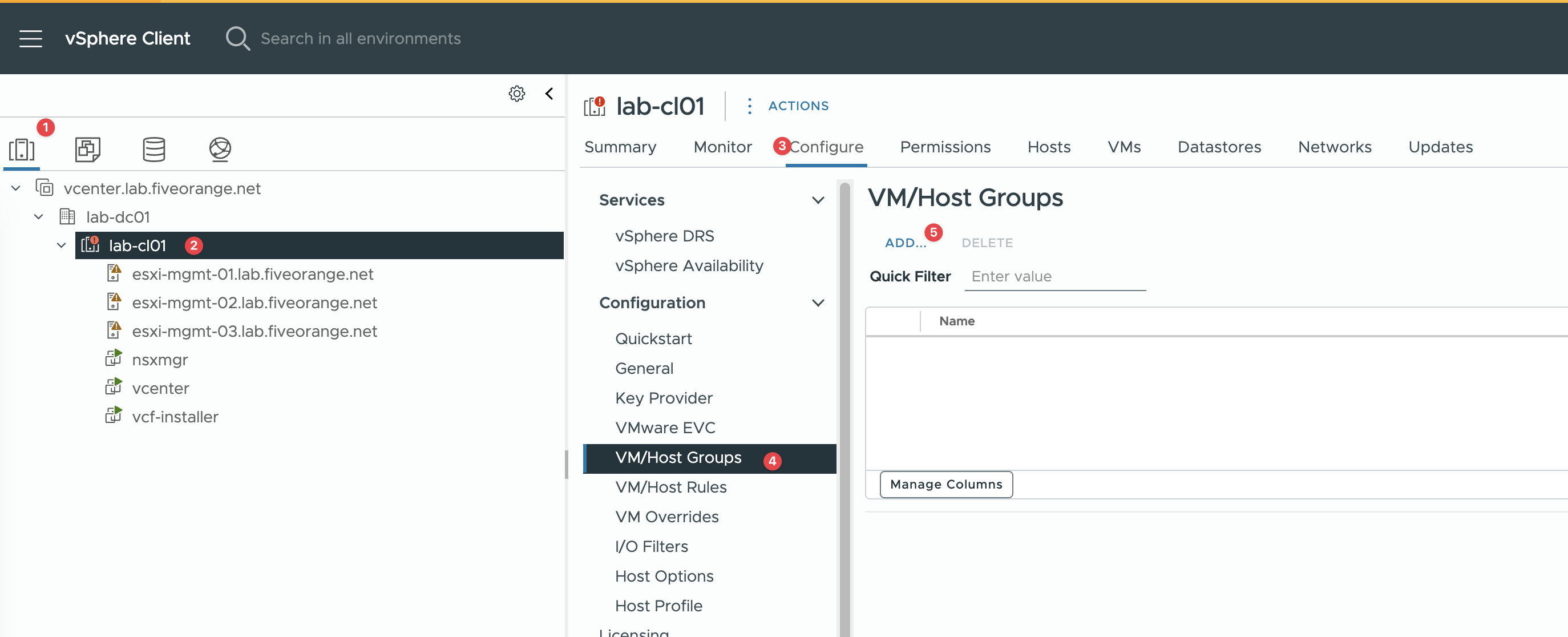

Login to vCenter and goto to configure Host Groups

Create Host groups

ESXI01 Hostgroup

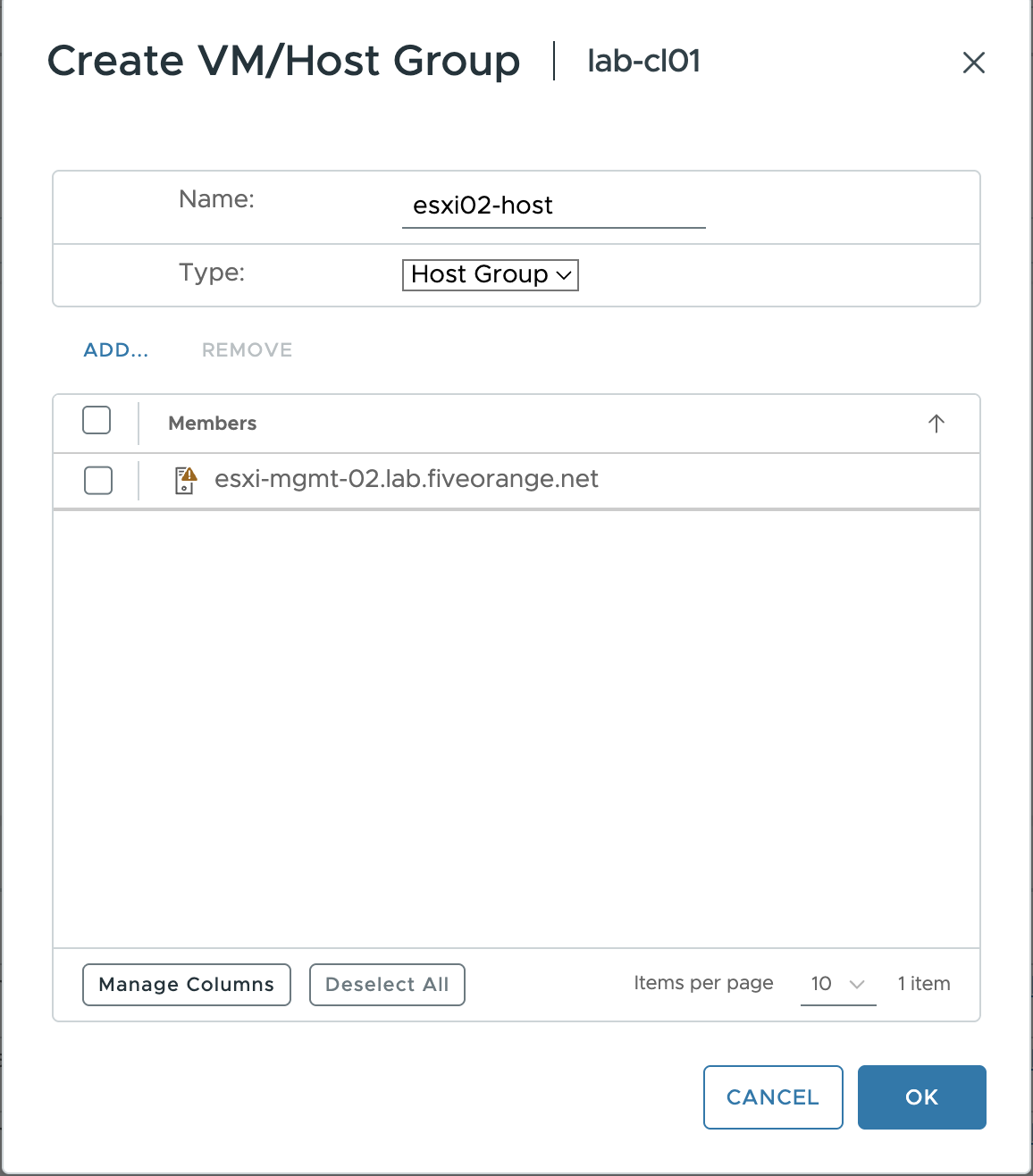

ESXI02 Hostgroup

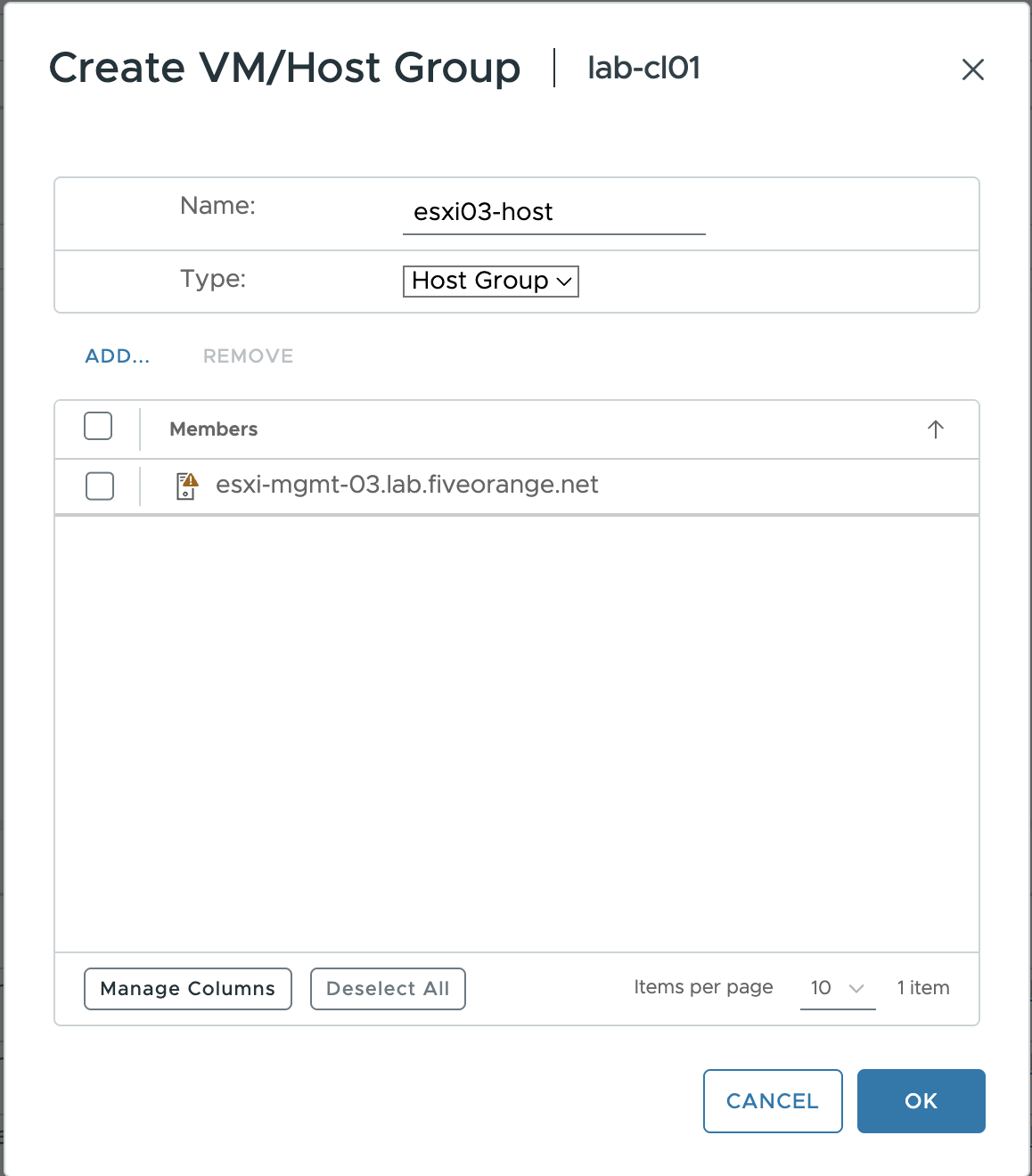

ESXI03 Hostgroup

Create VM groups

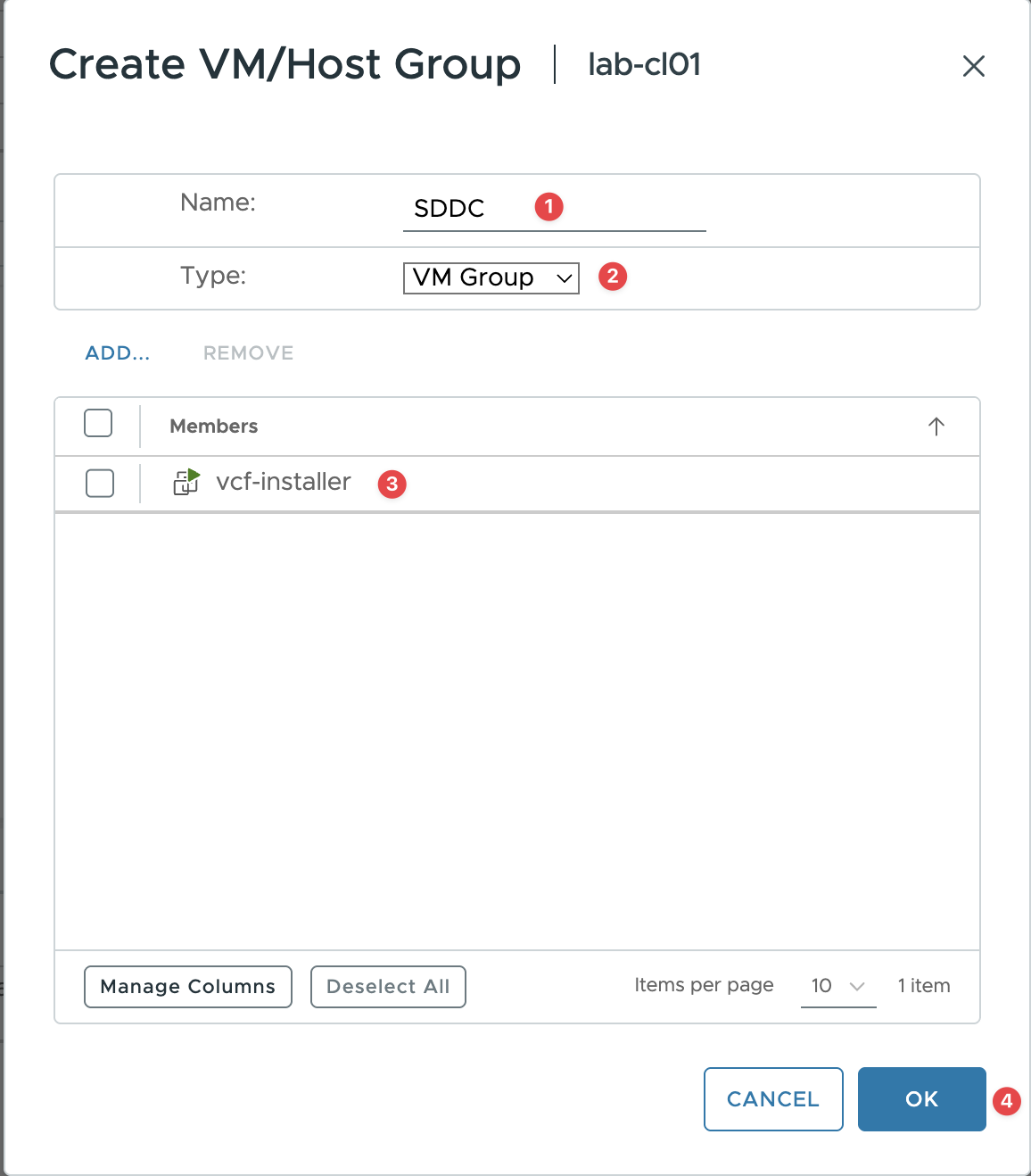

SDDC

vCenter

Couldn’t take screenshot, but its the same process.

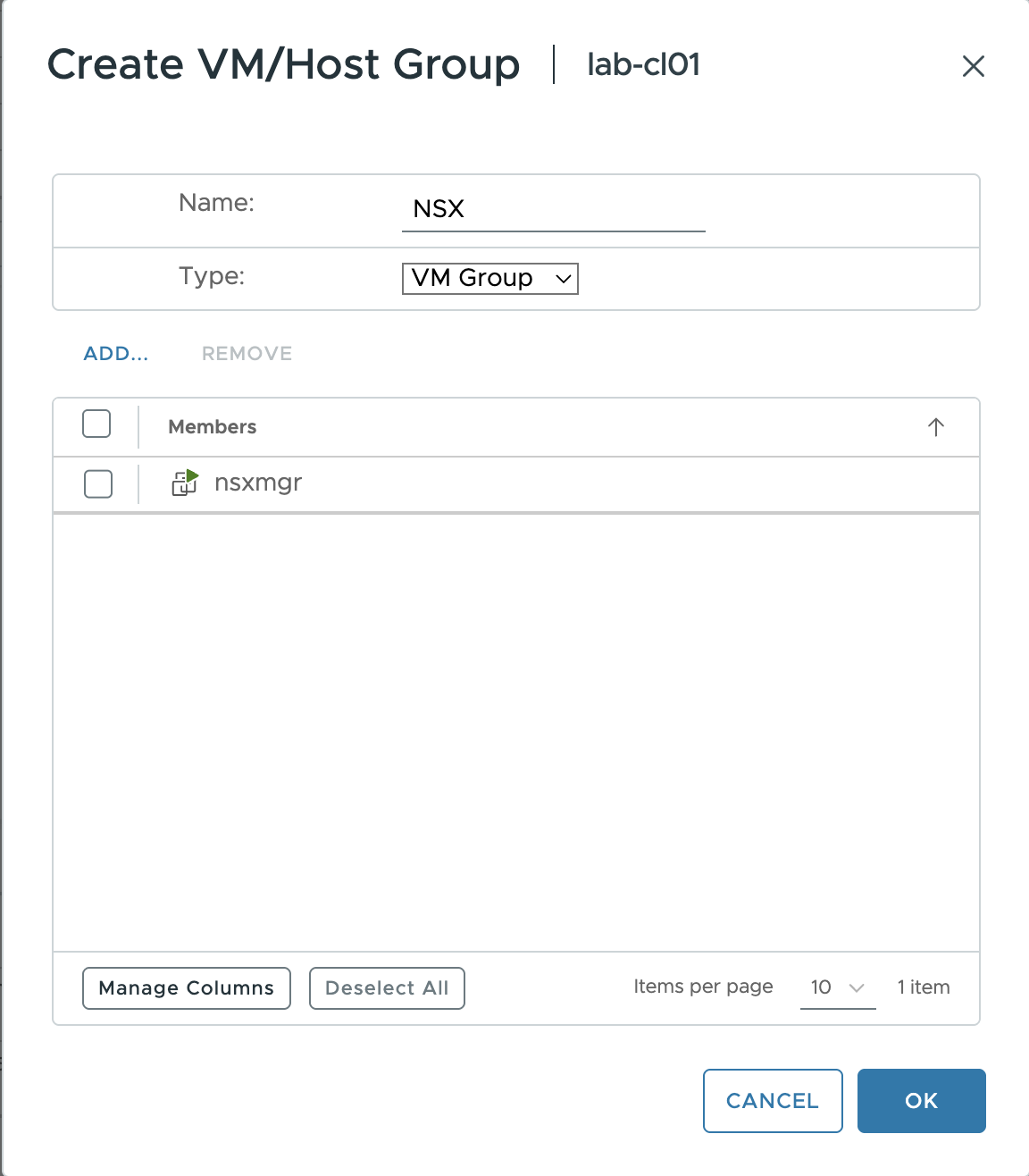

NSX Manager

Create VM Host Affinity Rules

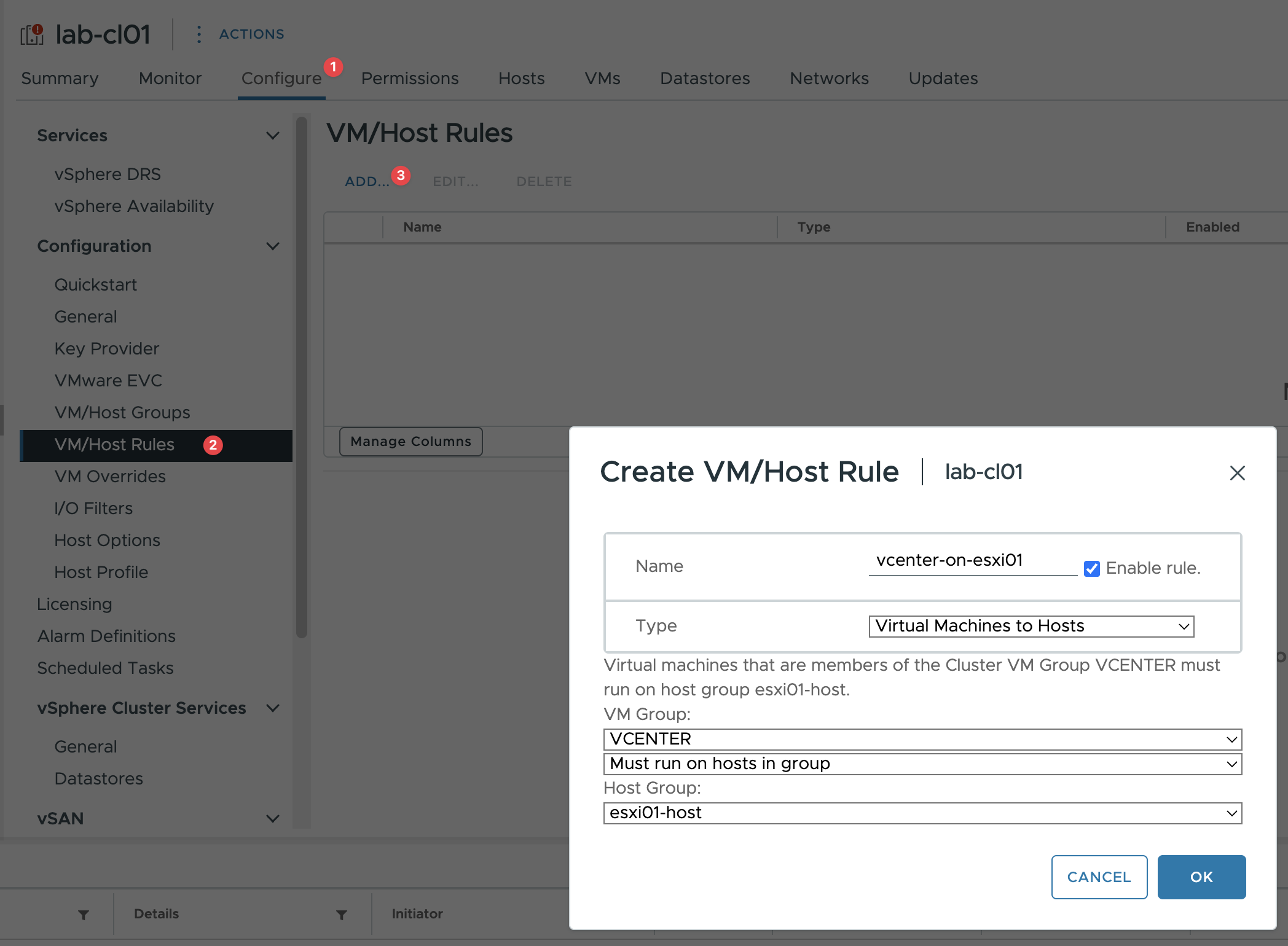

vCenter

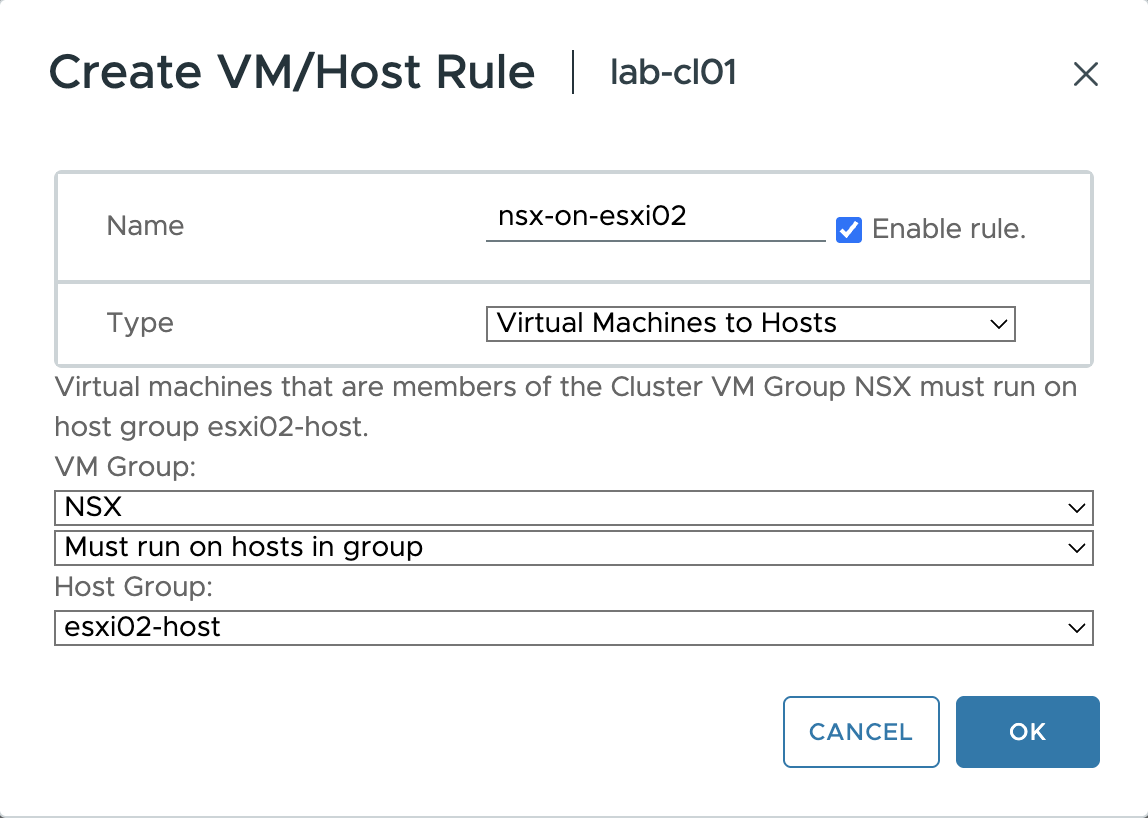

NSX

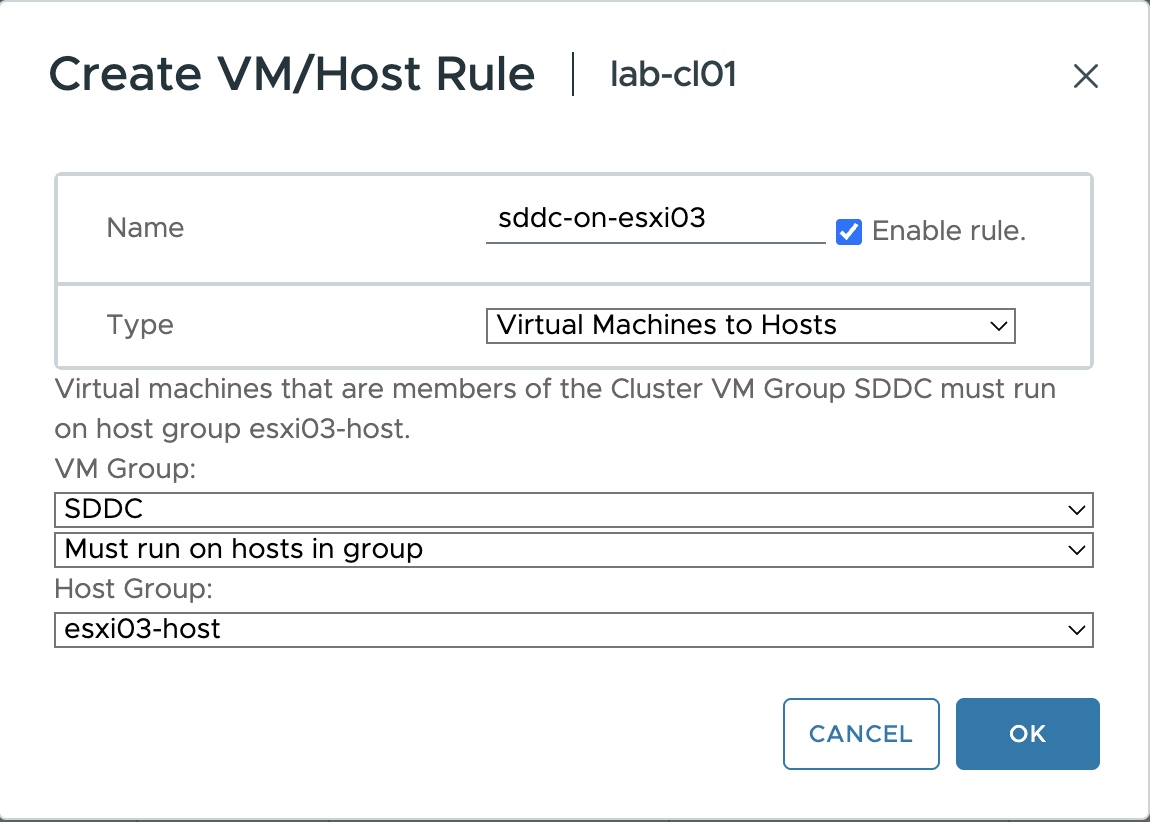

SDDC
